VM R 754 ISE5 Genset (Silent Pack) 50 kVA | EU stage V Engine specifications Rated Power: 50 kVA Cylinder: 4 Emission level: EU stage V Cooling: liquid Displacement: 2,97 l Bore and stroke: 94 x 107 mm Combustion: Common Rail Aspiration: turbocharged and intercooled Dimensions L x W x H: 2460 x
VM R 754 ISE5 OPU 55 kW | EU stage V Engine specifications Rated Power: 55 kW Cylinder: 4 Max. torque: 310 Nm Emission level: EU stage V Cooling: liquid Displacement: 2,97 l Bore and stroke: 94 x 107 mm Combustion: Common Rail Aspiration: turbocharged and intercooled Dimensions L x W x H:
VM R 754 EU6C/D/E OPU 84 kW | EURO 6 C/D/E / EU stage V Engine specifications Rated Power: 84 kW Cylinder: 4 Max. torque: 420 Nm Emission level: EURO 6C-E / EU stage V Cooling: liquid Displacement: 2.97 l Bore and stroke: 94 x 107 mm Combustion: Common Rail Aspiration: turbocharged and

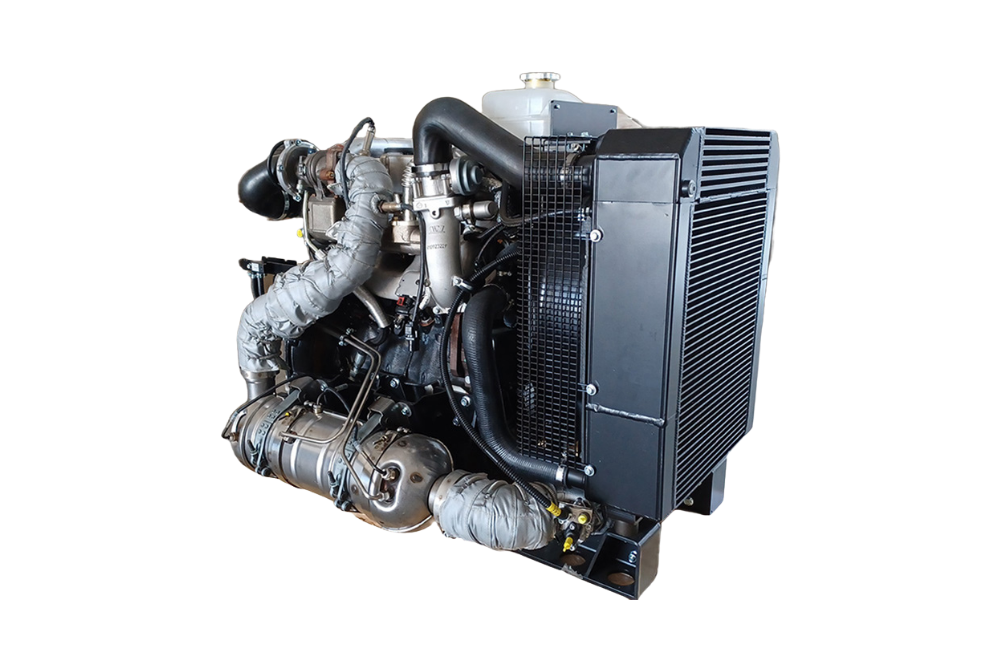

VM R 756 EU6C OPU 115 kW | EURO 6C / EU stage V Engine specifications Rated Power: 115 kW Cylinder: 6 Max. torque: 500 Nm Emission level: EURO 6C / EU stage V Cooling: liquid Displacement: 4.455 l Bore and stroke: 94 x 107 mm Combustion: Common Rail Aspiration: turbocharged and intercooled

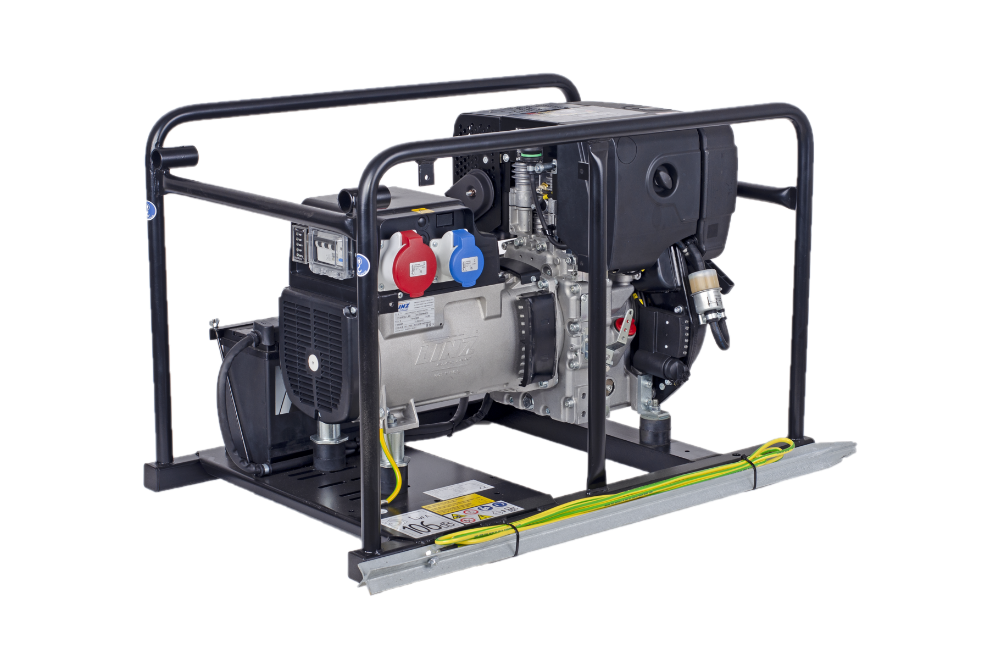

Hatz 1B50 Gen 7,6 kW | EU stage V Engine specifications Rated Power: 7,6 kW Cylinder: 1 Max. torque: 23,4 Nm Emission level: EU stage V Cooling: air cooled Displacement: 0,517 l Bore and stroke: 93 x 76 mm Combustion: mechanical/electronic Aspiration: natural aspirated Dimensions LxWxH: max. 1340x800x740 mm Dry weight: max. 155

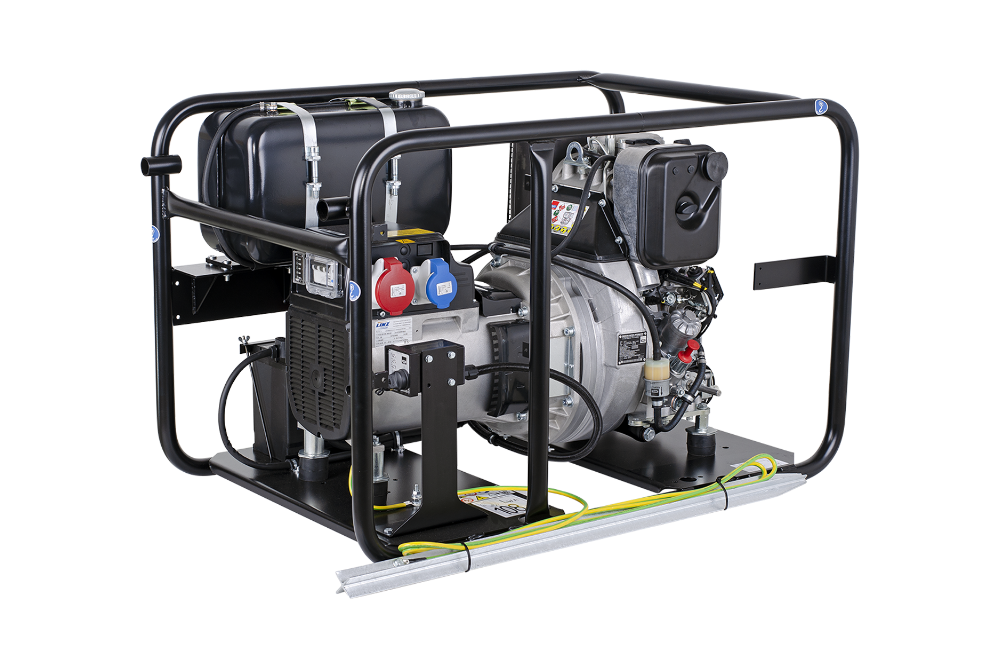

Hatz 1D81 Gen 5,4 - 9,6 kW | EU stage V Engine specifications Rated Power: 5,4 - 9,6 kW Cylinder: 1 Max. torque: 34,4 Nm Emission leven: EU stage V Cooling: air cooled Displacement: max. 0,667 l Bore and stroke: 100 x 85 mm Combustion: mechanical Aspiration: natural aspirated Dimensions L x W x H:

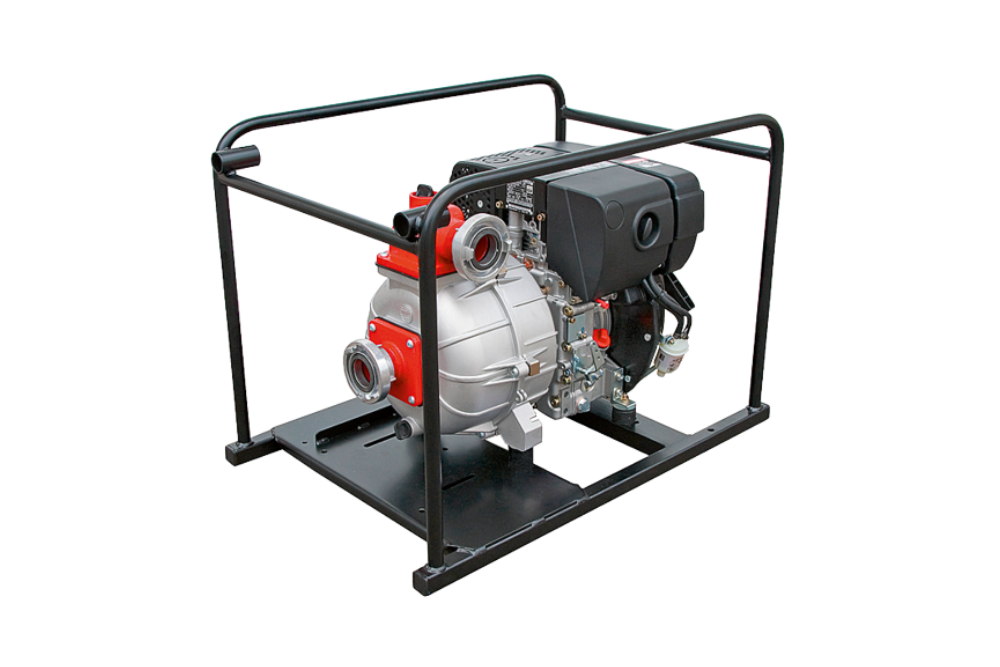

Hatz 1B Pump 3,1 - 4,5 kW | EU stage V Engine specifications Rated Power: 3,1 – 4,5 kW Cylinder: 1 Max. torque: max. 16,2 Nm Emission level: EU stage V Cooling: air cooled Displacement: max. 0,347 l Bore and stroke: 80 x 69 mm Combustion: mechanical Aspiration: natural aspirated

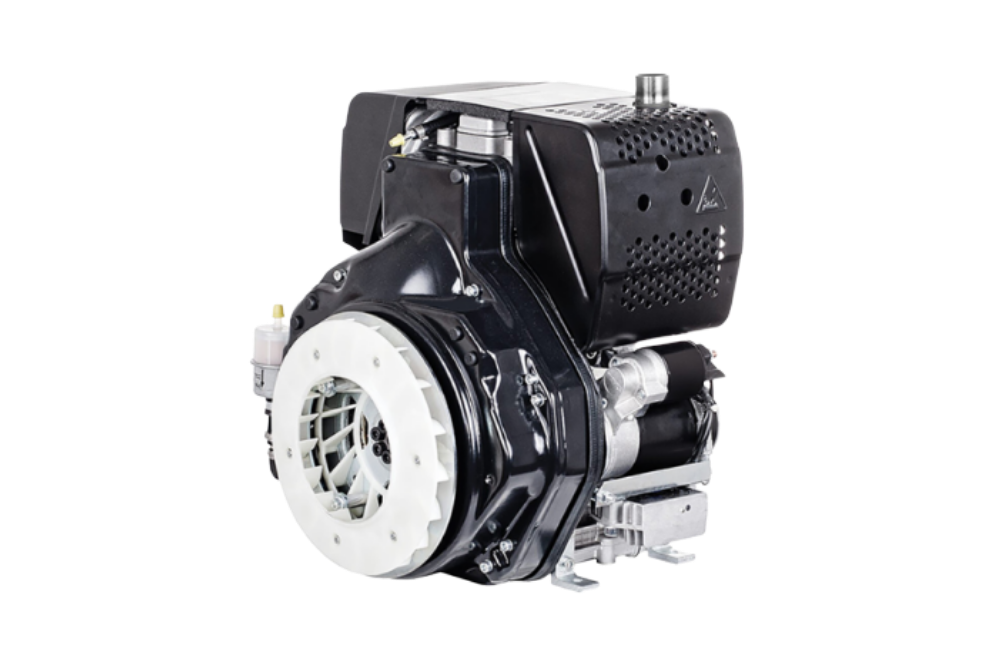

Hatz 1B50E fiPMG (Battery charger oder Generator sets) 6,8 kW | EU stage V / US EPA Tier 4f Engine specifications Rated Power: 6,8 kW Cylinder: 1 Max. torque: 23,4 Nm Emission level: EU stage V / US EPA Tier 4f Cooling: air cooled Displacement: 0,517 l Bore and stroke:

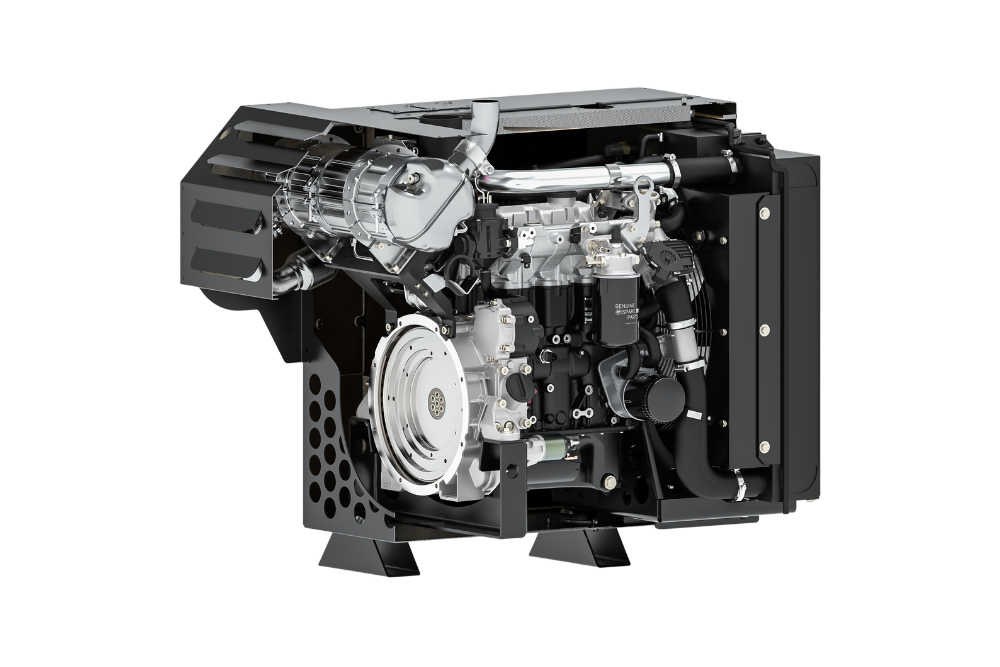

Hatz 4H50TICD (Silent Pack) 31 - 55,4 kW | EU stage V / US EPA Tier 4f Engine specifications Rated Power: 31 – 55,4kW Cylinder: 4 Max. torque: 244 Nm Emission level: EU stage V / US EPA Tier 4f Cooling: liquid Displacement: 1,952 l Bore and stroke: 84 x

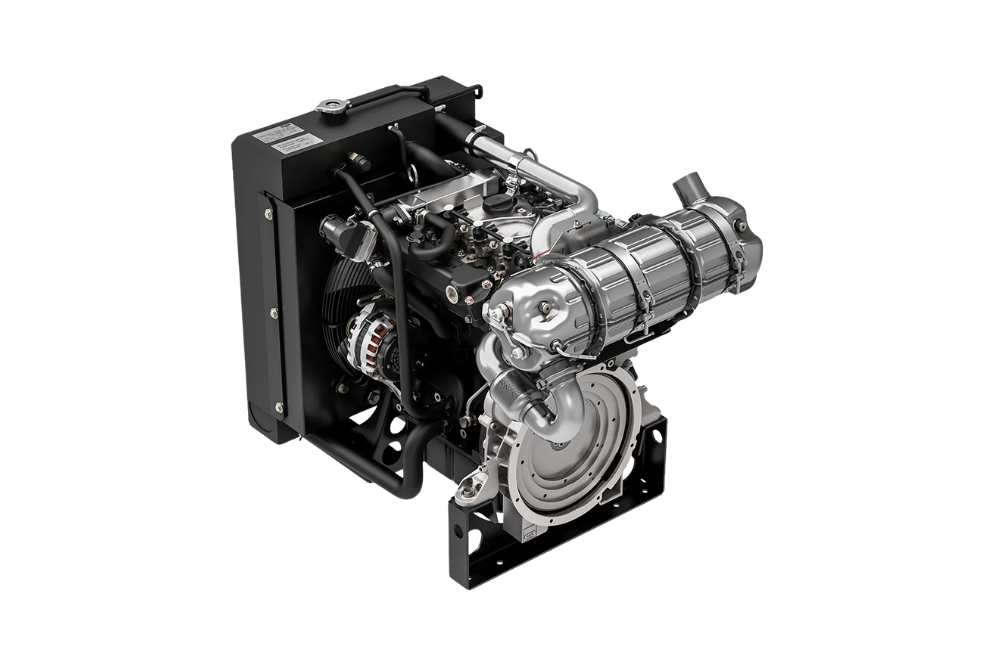

Hatz 4H50TICD OPU 31 - 55,4 kW | EU stage V / US EPA Tier 4f Engine specifications Rated Power: 31 – 55,4 kW Cylinder: 4 Max. torque: 244 Nm Emission level: EU stage V / US EPA Tier 4f Cooling: liquid Displacement: 1,952 l Bore and stroke: 84 x
Hans Wegmüller AG is responsible for sales and service of VM Motori, Hatz Diesel and Telma products. We take a flexible and dynamic approach by offering our customers tailored solutions to meet individual challenges.
