VM R 754 100 kW with Compact ATS 100 kW | EURO 6E / EU Stufe V / Tier 4 final Engine specifications Rated Power: 100 kW (T4F 80 kW) Cylinder: 4 Max. torque: 495 Nm (T4f 420 Nm) Emission level: EURO 6E / EU Stufe V / Tier 4 final Cooling: wassergekühlt Displacement:
VM SR 506 200 kW | EURO 6E Engine specifications Rated Power: 200kW Cylinder: V6 Max. torque: 3’600 Nm Emission level: : – Cooling: wassergekühlt Displacement: 3,0 l Bore and stroke: 69.6 x 82 mm Aspiration: Common Rail + HVO Combustion: turbogeladen und ladeluftgekühlt Dimensions LxBxH: max. 690x735x790 mm Dry weight: 221 kg Kontakt
VM SR 506 140 kW | EURO 6E Engine specifications Rated Power: 140 kW Cylinder: V6 Max. torque: 520 Nm Emission level: EURO 6E Cooling: liquid Displacement: 3,0 l Bore and stroke: 69.6 x 82 mm Combustion: Common Rail Aspiration: turbocharged and intercooled Dimensions LxBxH: max. 690x735x790 mm Dry weight: 221 kg

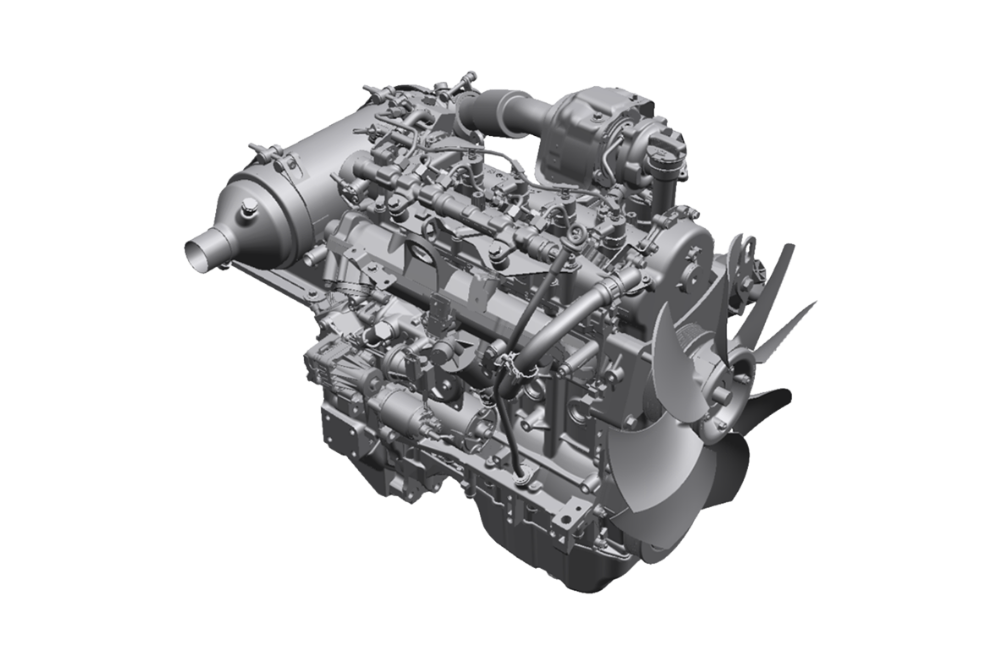

VM R 304 55kW | EU stage V Engine specifications Rated Power: 55 kW Cylinder: 4 Max. torque: 220 Nm Emission level: EU stage V Cooling: watercooled Displacement: 1,248 l Bore and stroke: 69.6 x 82 mm Aspiration: Common Rail Combustion: turbocharged and intercooled Dimensions LxBxH: max. 600x566x705 mm Dry weight: 137 kg

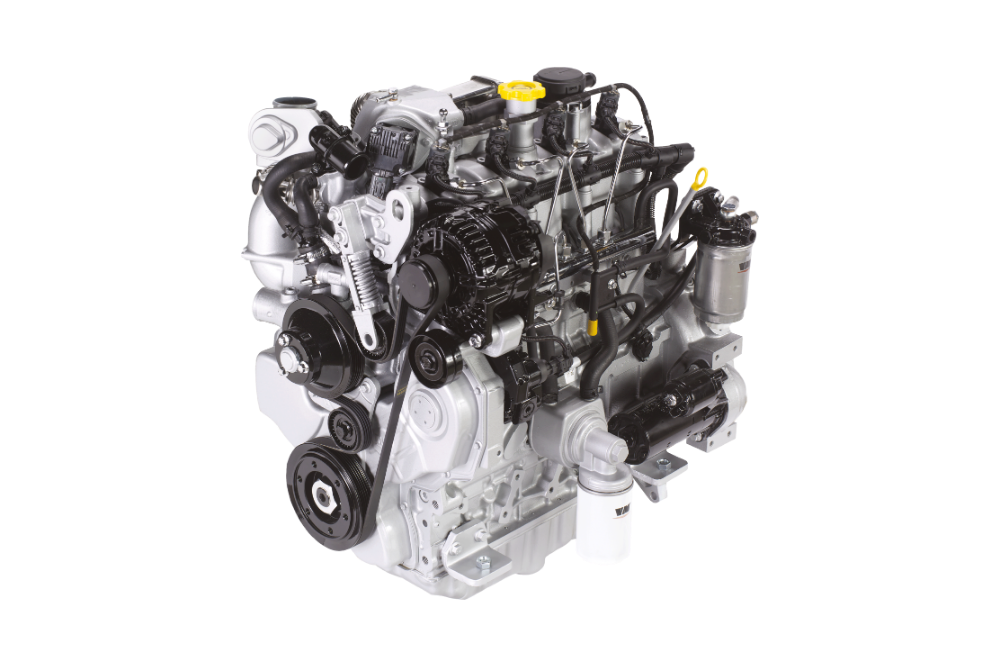

VM R 754 ISE5 55 kW | EU stage V Engine specifications Rated Power: 55 kW Cylinder: 4 Max. torque: 310 Nm Emission level: EU stage V Cooling: liquid Displacement: 2,97 l Bore and stroke: 94 x 107 mm Combustion: Common Rail Aspiration: turbocharged and intercooled Dimensions L x W x H: 1106
VM R 754 ISE5 Genset (Silent Pack) 50 kVA | EU stage V Engine specifications Rated Power: 50 kVA Cylinder: 4 Emission level: EU stage V Cooling: liquid Displacement: 2,97 l Bore and stroke: 94 x 107 mm Combustion: Common Rail Aspiration: turbocharged and intercooled Dimensions L x W x H: 2460 x
VM R 754 ISE5 OPU 55 kW | EU stage V Engine specifications Rated Power: 55 kW Cylinder: 4 Max. torque: 310 Nm Emission level: EU stage V Cooling: liquid Displacement: 2,97 l Bore and stroke: 94 x 107 mm Combustion: Common Rail Aspiration: turbocharged and intercooled Dimensions L x W x H:
VM R 754 EU6C OPU 80 kW | EURO 6 C / EU stage V Engine specifications Rated Power: 80 kW Cylinder: 4 Max. torque: 420 Nm Emission level: EURO 6C / EU stage V Cooling: liquid Displacement: 2.97 l Bore and stroke: 94 x 107 mm Combustion: Common Rail Aspiration: turbocharged and
VM R 756 EU6C OPU 115 kW | EURO 6C / EU stage V Engine specifications Rated Power: 115 kW Cylinder: 6 Max. torque: 500 Nm Emission level: EURO 6C / EU stage V Cooling: liquid Displacement: 4.455 l Bore and stroke: 94 x 107 mm Combustion: Common Rail Aspiration: turbocharged and intercooled
Hatz 1B50 Gen 7,6 kW | EU Stufe V Motorenspezifikationen Leistung: 7,6 kW Zylinder: 1 Max. Drehmoment: 23,4 Nm Abgasstufe: EU Stufe V Kühlung: luftgekühlt Hubraum: 0,517 l Bohrung und Hub: 93 x 76 mm Einspritzung: mechanisch/elektronisch Ansaugsystem: saugend Abmessung LxBxH: max. 1340x800x740 mm Trockengewicht: max. 155 kg Leistung Generator: 8,5 kVA Spannung Generator: 400V Frequenz: 50Hz
Hans Wegmüller AG is responsible for sales and service of VM Motori, Hatz Diesel and Telma products. We take a flexible and dynamic approach by offering our customers tailored solutions to meet individual challenges.
