VM MR 706 L-2 270 – 320 PS | RCD2 / BSO2 Engine specifications Rated Power: 270 – 320 PS Cylinder: 6 Max. torque: 630 – 680 Nm Emission level: RCD2 / BSO2 Cooling: wassergekühlt Displacement: 4.2 l Bore and stroke: 94 x 100 mm Combustion: Common Rail Aspiration: turbocharged and intercooled Dimensions L

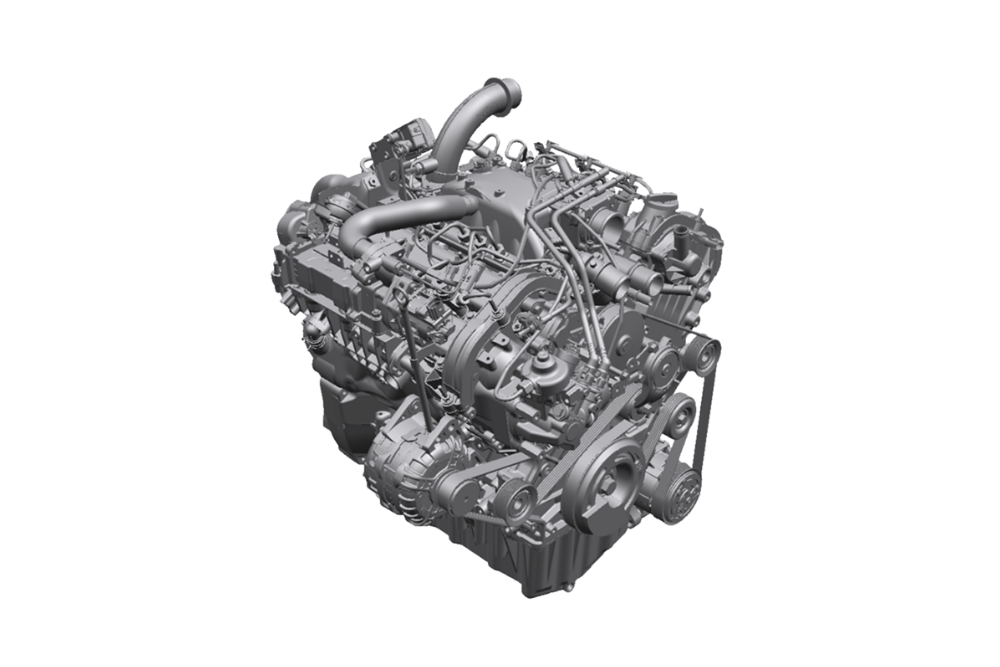

VM SR 506 200 kW | EURO 6E Engine specifications Rated Power: 200kW Cylinder: V6 Max. torque: 650 Nm Emission level: – Cooling: watercooled Displacement: 3,0 l Bore and stroke: 69.6 x 82 mm Aspiration: Common Rail Combustion: turbogeladen und ladeluftgekühlt Dimensions LxBxH: max. 690x735x790 mm Dry weight: 221 kg Contact
Hatz 3F30 / 3F35 / 3F45 OPU 6,4 – 18,4 kW | EU stage V Engine specifications Rated Power: 6,4 – 18,4 kW Cylinder: 3 Max. torque: 48 – 76 Nm Emission level: EU stage V Cooling: water cooled Displacement: 0,952 – 1,318 l Bore and stroke: 76 x 70 / 76 x 81 / 78 x 92 mm
Hatz 3F30 / 3F35 / 3F45 6,4 – 18,4 kW | EU stage V Engine specifications Rated Power: 6,4 – 18,4 kW Cylinder: 3 Max. torque: 48 - 76 Nm Emission level: EU stage V Cooling: water cooled Displacement: 0,952 - 1,318 l Bore and stroke: 76 x 70 / 76 x 81 /
VM R 304 H5 Hybrid 55 kW + 20 kW @ 48V | EU stage V Engine specifications Rated Power: 55 kW + 20 kW @ 48V Cylinder: 4 Max. torque: 185 Nm + 105 Nm @ 1'400 rpm Emission level: EU stage V Cooling: liquid Displacement: 1,248 l Bore and stroke: 69.6
VM H 753 IE5 55 kW | EU stage V Engine specifications Rated Power: 55 kW Cylinder: 3 Max. torque: 267 Nm Emission level: EU stage V Cooling: liquid Displacement: 2,2 l Bore and stroke: 94 x 107 mm Combustion: Hydrogen Aspiration: turbocharged and intercooled Dimensions L x W x H: max. 590
VM R 304 55kW | EU stage V Engine specifications Rated Power: 55 kW Cylinder: 4 Max. torque: 220 Nm Emission level: EU stage V Cooling: watercooled Displacement: 1,248 l Bore and stroke: 69.6 x 82 mm Aspiration: Common Rail Combustion: turbocharged and intercooled Dimensions LxBxH: max. 600x566x705 mm Dry weight: 137 kg
VM R 754 ISE5 55 kW | EU stage V Engine specifications Rated Power: 55 kW Cylinder: 4 Max. torque: 310 Nm Emission level: EU stage V Cooling: liquid Displacement: 2,97 l Bore and stroke: 94 x 107 mm Combustion: Common Rail Aspiration: turbocharged and intercooled Dimensions L x W x H: 1106
Hans Wegmüller AG is responsible for sales and service of VM Motori, Hatz Diesel and Telma products. We take a flexible and dynamic approach by offering our customers tailored solutions to meet individual challenges.
